- Out-of-Stock

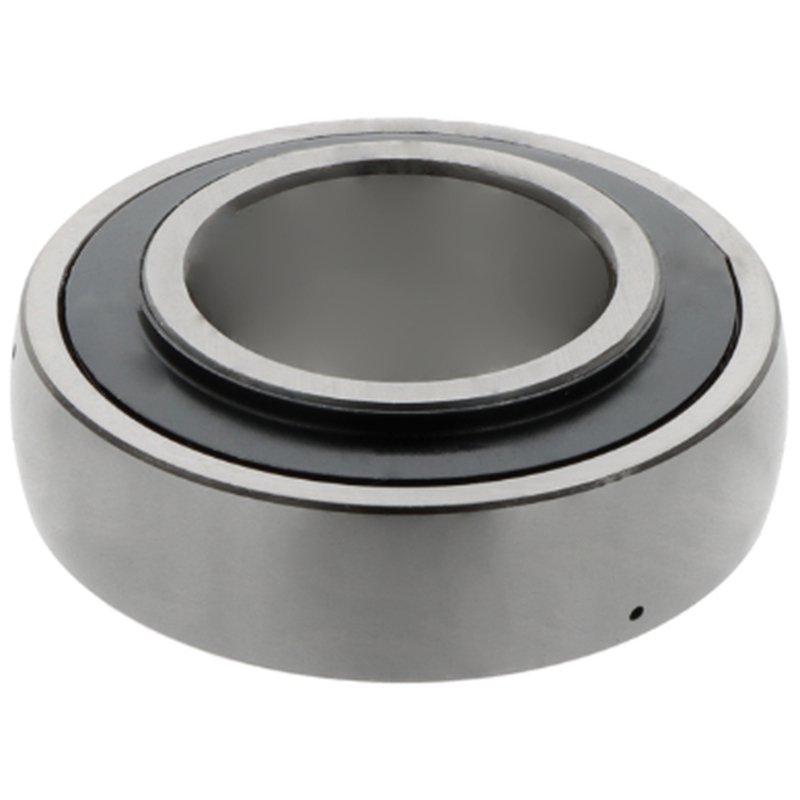

Spannlager UK210 G2 50x90x31mm SNR
Reference AP10148664
EAN: 3413529503650
Data sheet
- Material
- Standard bearing steel
- Outer ring
- Spherical
- Seal
- Contact seals on both sides
- Cage
- Sheet steel cage
- Temperature range
- -20 to +120 °C
- Tolerance class
- Tolerance class P0/PN2 / ABEC 1
- Bore
- Tapered bore (1:12)
- Fixing
- Adapter sleeve
- Inner ring
- Widened inner ring on both sides
- Width
- 31 mm
- Inner dimension
- 50 mm
- Outer dimension
- 90 mm
- Weight
- 0,588 kg
Innendurchmesser: 50mm
Außendurchmesser: 90mm
Breite: 31mm
Gewicht: 0.588000kg
