Radial insert ball bearings UC308 G2 40x90x52mm SNR

Reference AP10148540 EAN: 3413529502790
  • Out-of-Stock

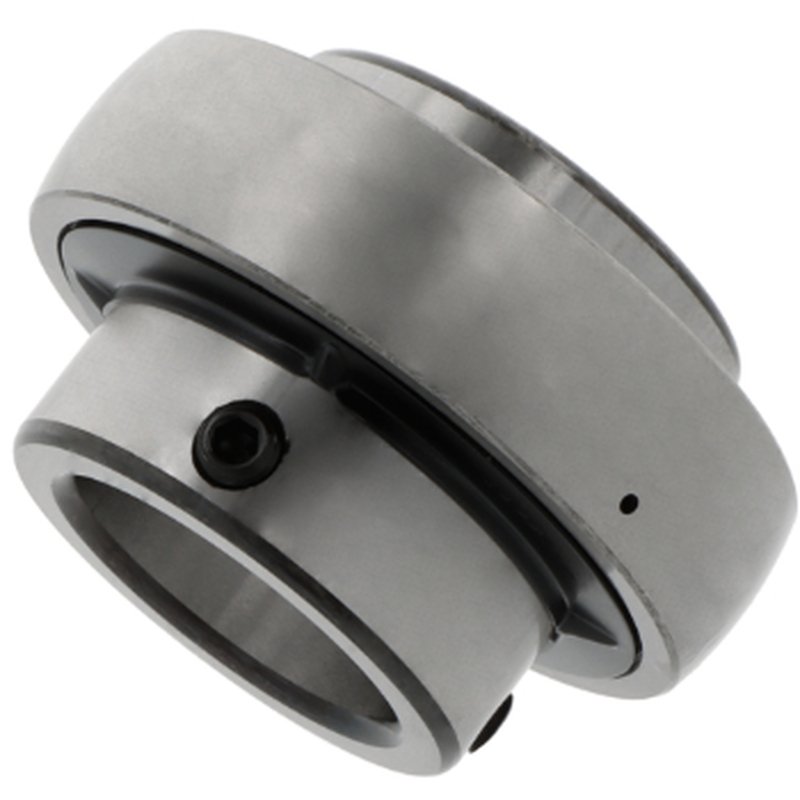

Radial insert ball bearings UC308 G2
Data sheet
Material
Standard bearing steel
Outer ring
Spherical
Seal
Contact seals on both sides
Cage
Sheet steel cage
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Bore
Cylindrical bore
Fixing
Threaded pins
Inner ring
Widened inner ring on both sides
Width
52 mm
Inner dimension
40 mm
Outer dimension
90 mm
Weight
0,998 kg
€59.79
[€59.79 Stück]
Tax included Shipping excluded
Out-of-Stock

Description

The SNR UC308 G2 tension bearing stands out for its robust construction and precise processing. With an inner diameter of 40 mm, an outer diameter of 90 mm, and a width of 52 mm, it offers reliable performance. The steel sheet cage ensures stability, while the double-sided grinding seal provides high protection. The cylindrical bore and standard bearing steel make this bearing versatile. With a temperature range of -20 to +120 °C and a tolerance class P0/PN or ABEC 1, the UC308 G2 is ideal for demanding applications. Thanks to the double-sided widened inner ring and convex outer ring, fixing with threaded pins is easy and secure.
