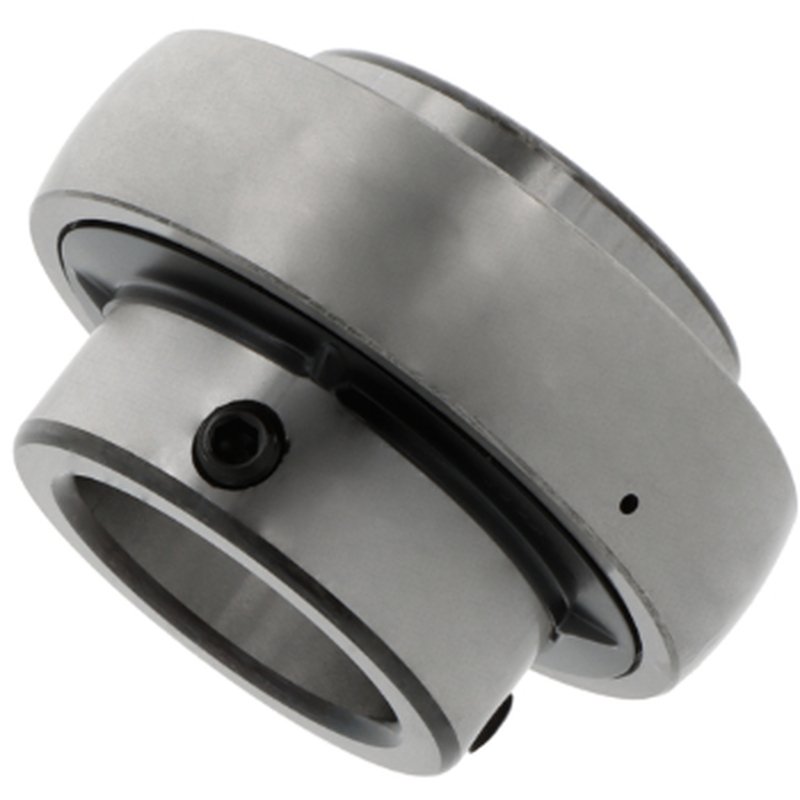

Radial insert ball bearings UC212 G2 60x110x65,1mm SNR
Reference AP10148530
EAN: 3413529502691
Data sheet
- Material
- Standard bearing steel
- Outer ring
- Spherical
- Seal
- Contact seals on both sides
- Cage
- Sheet steel cage
- Temperature range
- -20 to +120 °C
- Tolerance class
- Tolerance class P0/PN2 / ABEC 1
- Bore
- Cylindrical bore
- Fixing
- Threaded pins
- Inner ring
- Widened inner ring on both sides
- Width
- 65,1 mm
- Inner dimension
- 60 mm
- Outer dimension
- 110 mm
- Weight
- 1,45 kg
Inner dimension: 60 mm
Outer dimension: 110 mm
Width: 65,1 mm
Weight: 1.450000 kg
