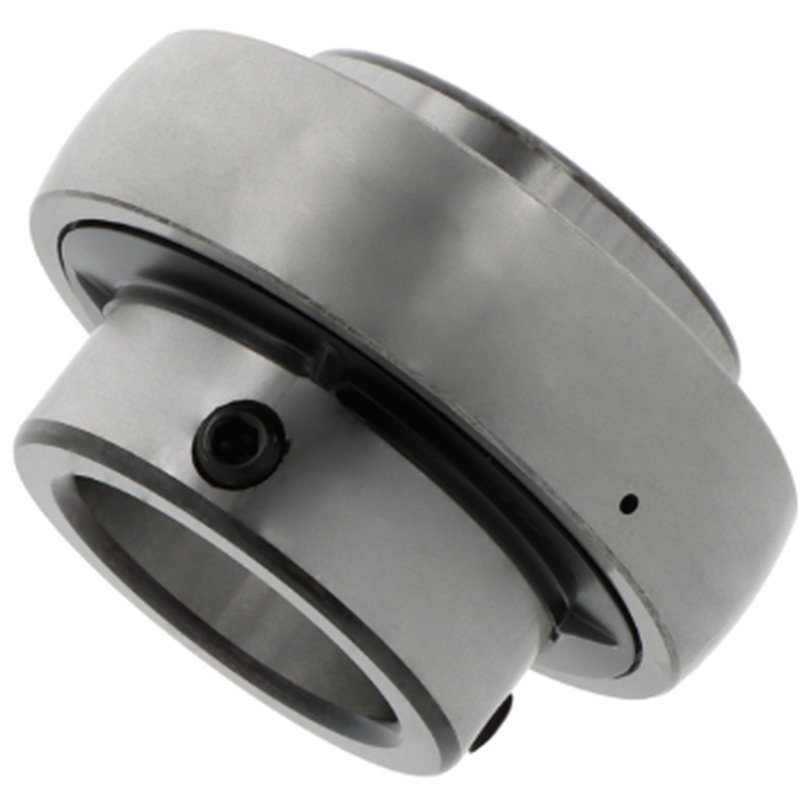

Radial insert ball bearings UC204 G2 20x47x31mm SNR

The tension bearing UC204 G2 from SNR combines high quality and precision. With an inner diameter of 20 mm, an outer diameter of 47 mm, and a width of 31 mm, it is ideal for a variety of applications. Weighing only 0.165 kg, it ensures easy handling. The steel sheet cage provides stability and durability.

The tension bearing is equipped with double-sided grinding seals, ensuring reliable protection against contamination and moisture. The cylindrical bore and convex outer ring guarantee easy installation and optimal power transmission. The inner ring is widened on both sides, allowing for high radial load capacity.

Thanks to its standard rolling bearing steel and temperature range from -20 to +120 °C, the tension bearing UC204 G2 is suitable for a variety of environmental conditions. The tolerance class P0/PN or ABEC 1 ensures precise functionality. It is secured using threaded pins, ensuring a secure positioning.

For high-quality and reliable tension bearings, the UC204 G2 model from SNR is an excellent choice.
