Spherical roller bearings 22218 EF800 90x160x40mm SNR

Reference AP10187374 EAN: 3413520969868
  • Out-of-Stock

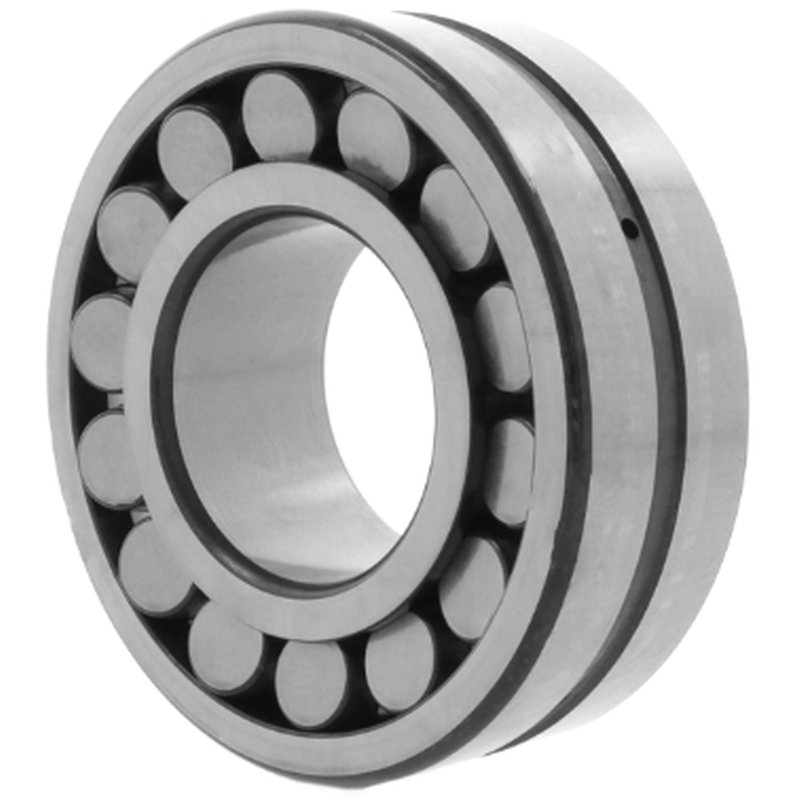

Spherical roller bearings 22218 EF800
Data sheet
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Seal
None, open bearing
Clearance
Strongly increased radial clearance with narrowed tolerances
Cage
Brass cage
Temperature range
-40 to +200 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Bore
Cylindrical bore
Version
For vibrating load
Width
40 mm
Inner dimension
90 mm
Outer dimension
160 mm
Weight
3,49 kg
€263.02
[€263.02 Stück]
Tax included Shipping excluded
Out-of-Stock

Description

The spherical roller bearing 22218 EF800 from SNR is a reliable bearing for applications in roller technology. With an inner diameter of 90 mm, an outer diameter of 160 mm, and a width of 40 mm, it offers high performance and load capacity. The bearing weighs 3.49 kg and features an outer ring with lubrication groove and lubrication holes, suitable for temperatures ranging from -40 to +200 °C.

The bearing clearance is greatly increased and provided with tight tolerances, while the tolerance class is P0/PN or ABEC 1. The brass cage and the material made of standard bearing steel ensure a long service life and high precision. The spherical roller bearing has a cylindrical bore, is open, and designed for oscillating loads.
