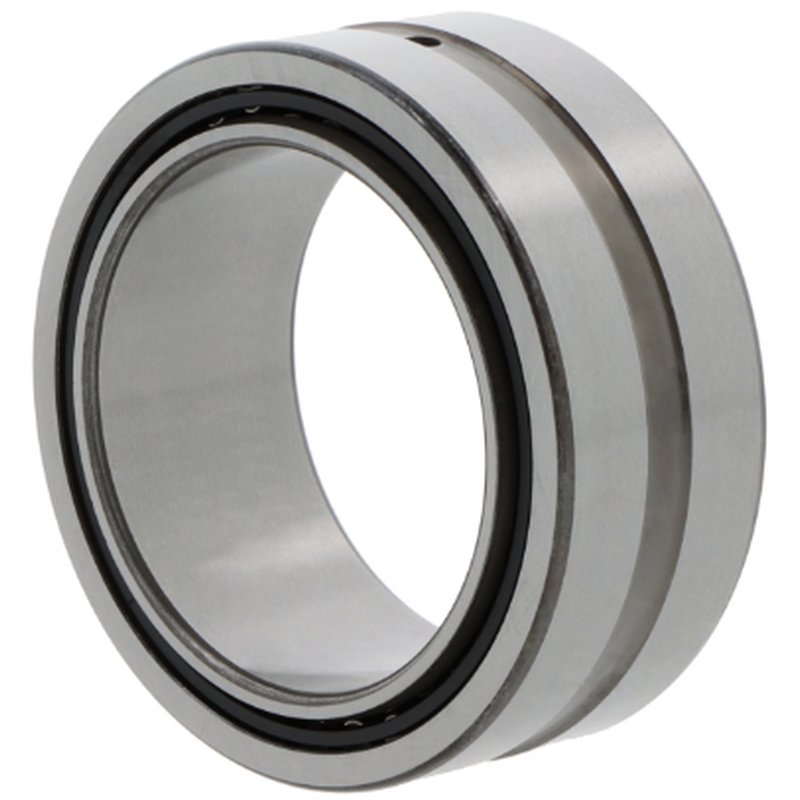

Machined needle roller bearings NKI6/16 TN 6x16x16mm SKF

Reference AP10226722 EAN: 7316571079738
Machined needle roller bearings NKI6/16 TN
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Polyamide cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
With inner ring
Width
16 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
6 mm
Outer dimension
16 mm
Weight
0,017 kg
€17.76
[€17.76 Stück]
Tax included Shipping excluded
In stock

Description

The solid needle roller bearing NKI6/16 TN from SKF impresses with its technical data: inner diameter of 6 mm, outer diameter of 16 mm, and a width of 16 mm. With a weight of only 0.017 kg, it is ideal for various applications. The open bearing features a polyamide cage and normal radial clearance. The temperature range is between -20 to +100 °C and the tolerance class is P0/PN or ABEC 1. Thanks to the inner ring and the circumferential groove with lubrication hole(s), the single row bearing is easy to lubricate and maintain.
