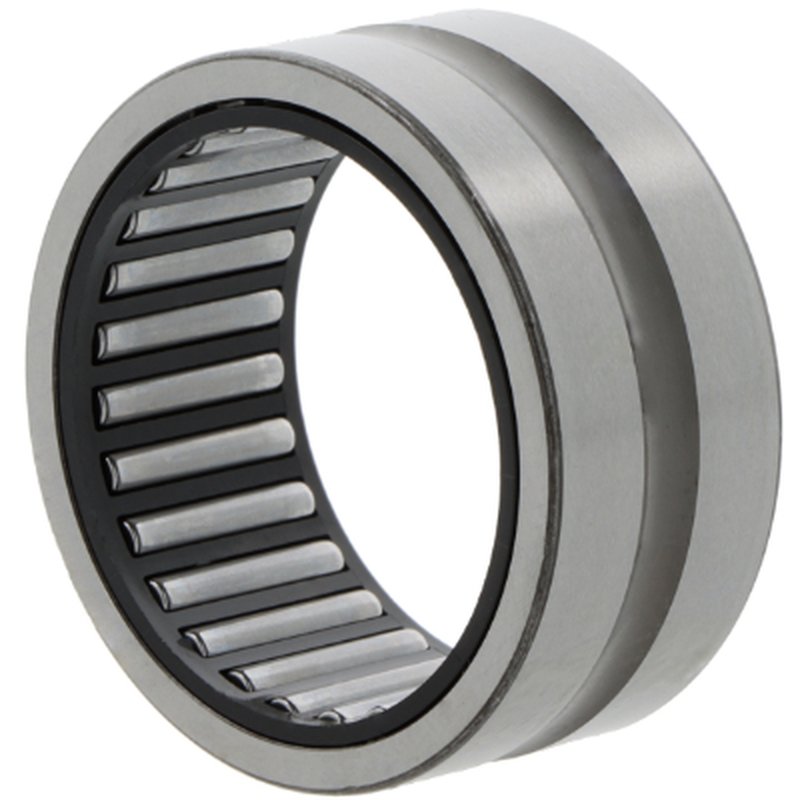

Machined needle roller bearings NK8/12 TN 8x15x12mm SKF

The solid needle roller bearing NK8/12 TN from SKF has an inner diameter of 8 mm, an outer diameter of 15 mm, and a width of 12 mm. With a weight of only 0.009 kg, it is a lightweight yet robust bearing. It has no seal and is an open bearing with normal radial clearance.

The cage of the needle roller bearing is made of polyamide and it can be used in a temperature range of -20 to +100 °C. The tolerance class of the bearing is P0/PN or ABEC 1 and it does not have an inner ring. Lubrication is done through a circumferential groove with lubrication holes and it is a single row bearing.

The solid needle roller bearing NK8/12 TN is ideal for applications that require a compact design and high load capacity. With its high-quality construction and reliability, it is the ideal choice for various industrial applications.
