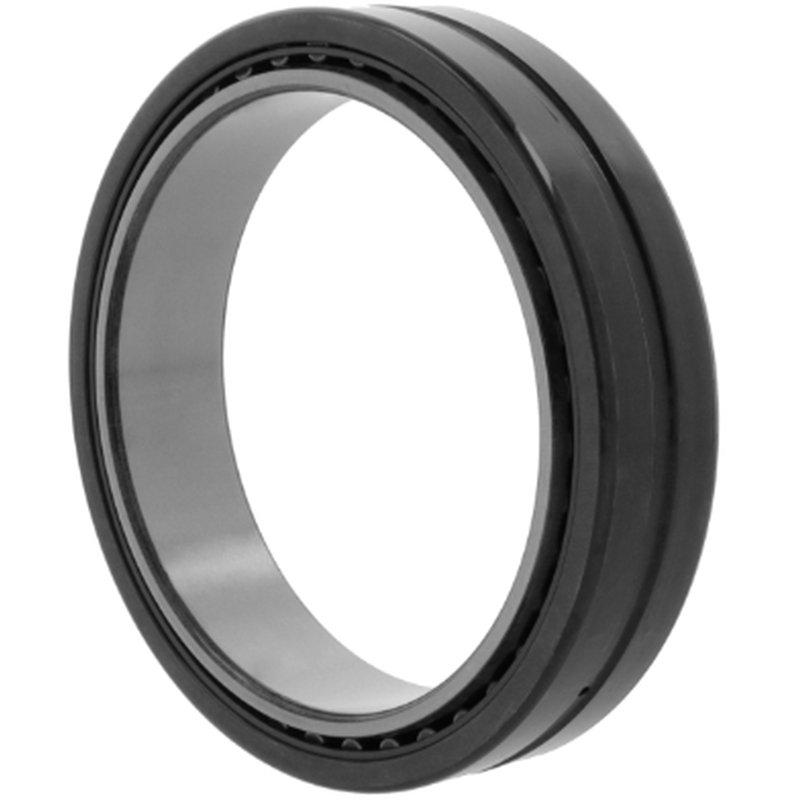

Machined needle roller bearings NA69/28 28x45x30mm SKF

The solid needle roller bearing NA69/28 from SKF features an inner diameter of 28 mm, an outer diameter of 45 mm, and a width of 30 mm. Weighing only 0.182 kg, it is lightweight among bearings. Lubrication is done through a circumferential groove with lubrication holes, while the bearing does not require a seal and therefore remains open.

The bearing clearance corresponds to normal radial bearing clearance, and the cage is made of sturdy steel sheet. The temperature range is from -20 to +100 °C, allowing for versatile applications. The tolerance class is P0/PN or ABEC 1, indicating high precision.

The needle roller bearing is equipped with an inner ring and features a row of needles, making it a single row bearing. With these technical specifications, the SKF needle roller bearing NA69/28 offers quality and reliability for various applications.
