Machined needle roller bearings NK8/16 8x15x16mm NTN

Reference AP10156938 EAN: 4547359129458

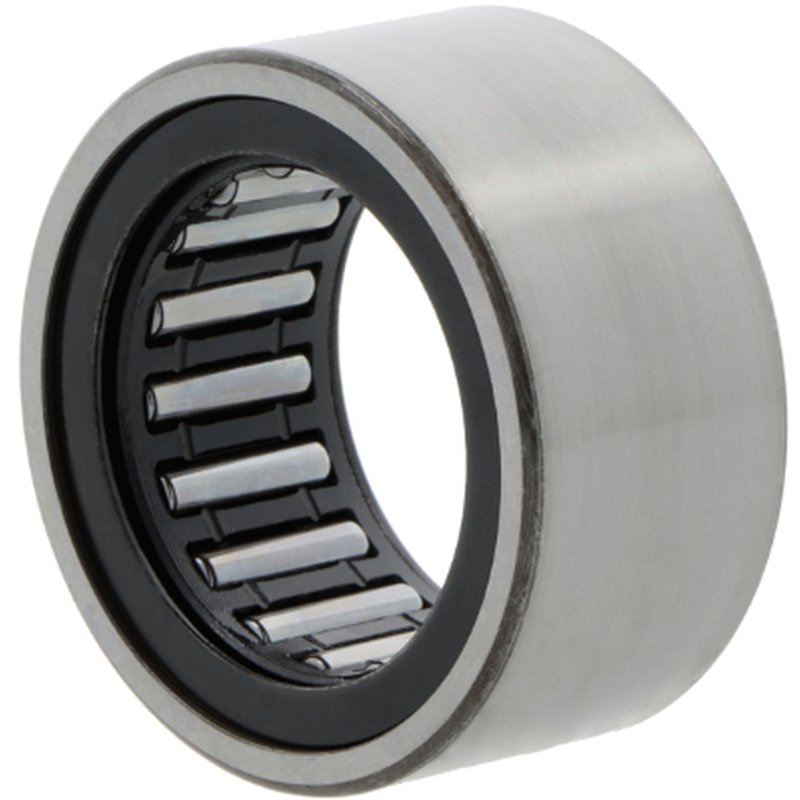

Machined needle roller bearings NK8/16
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
Without inner ring
Width
16 mm
Lubrication
Without lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
8 mm
Outer dimension
15 mm
Weight
0,018 kg
€6.59
[€6.59 Stück]
Tax included Shipping excluded
Last items in stock

Description

The solid needle roller bearing NK8/16 from NTN features an inner diameter of 8 mm, an outer diameter of 15 mm, and a width of 16 mm. With a weight of only 0.018 kg, this bearing is ideal for applications with a temperature range of -20 to +120 °C. The open bearing has a tolerance class of P0/PN or ABEC 1 and does not require an inner ring or lubrication holes. Thanks to the single row design and steel sheet cage, the needle roller bearing provides normal radial clearance for optimal performance.
