Machined needle roller bearings NA4836 180x225x45mm NTN

Reference AP10156896 EAN: 4547359112887
  • Out-of-Stock

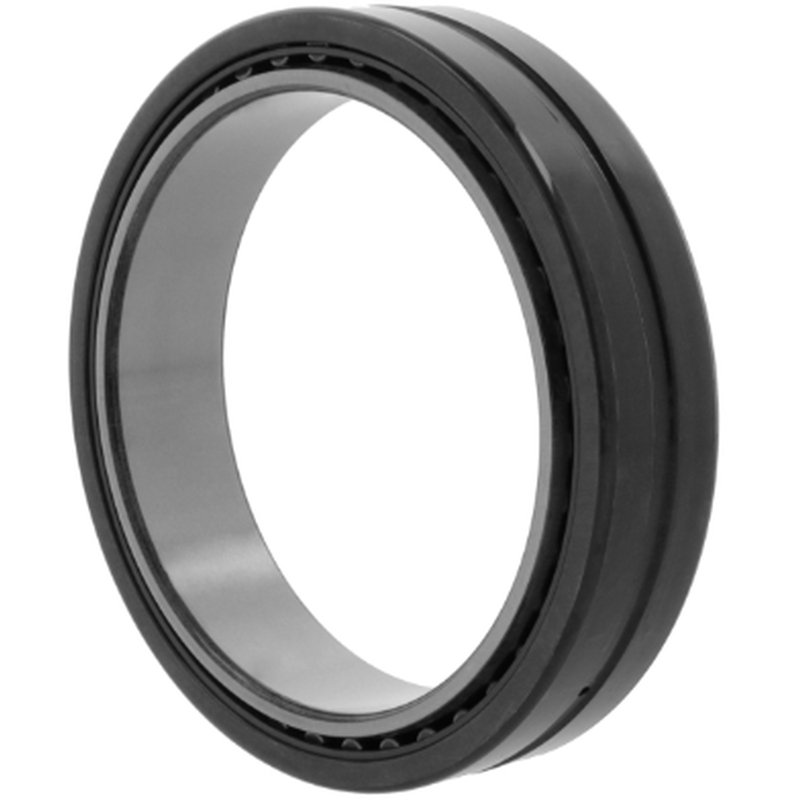

Machined needle roller bearings NA4836
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
With inner ring
Width
45 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
180 mm
Outer dimension
225 mm
Weight
4,422 kg
€373.46
[€373.46 Stück]
Tax included Shipping excluded
Out-of-Stock

Description

The solid needle roller bearing NA4836 from NTN has an inner diameter of 180 mm, an outer diameter of 225 mm, and a width of 45 mm. With a weight of 4.422 kg, it is ideal for applications in a temperature range of -20 to +120 °C. The open bearing has a tolerance class of P0/PN or ABEC 1 and is lubricated with a circumferential groove with lubrication hole(s). It is a single row bearing with inner ring and a steel sheet cage. The bearing clearance is designed for normal radial loads.
