Machined needle roller bearings NKI22/16 22x34x16mm NKE

Reference AP10155405 EAN: 9008745716881

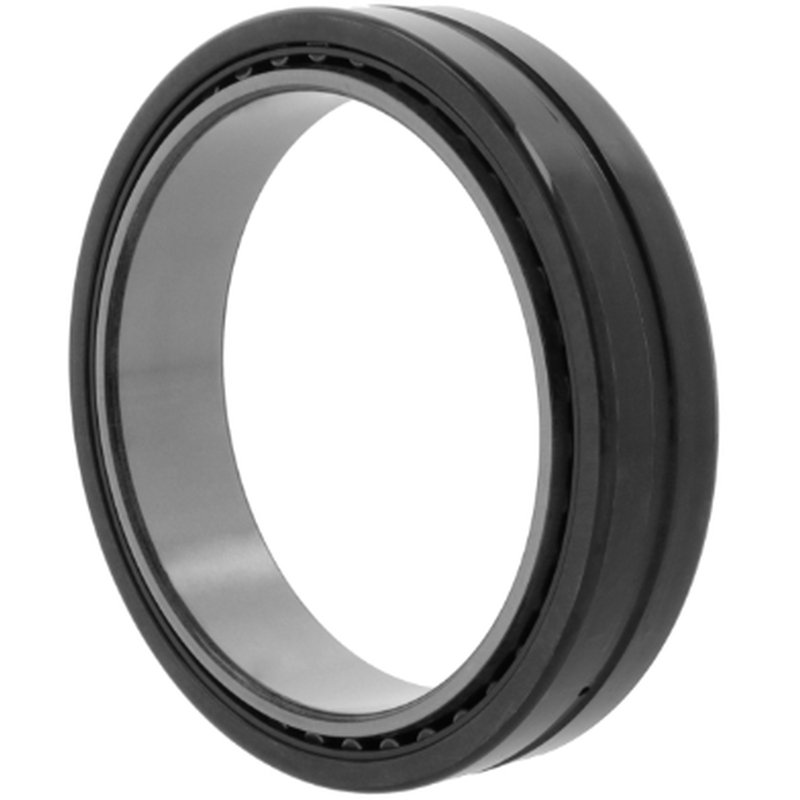

Machined needle roller bearings NKI22/16
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
With inner ring
Width
16 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
22 mm
Outer dimension
34 mm
Weight
0,05 kg
€13.46
[€13.46 Stück]
Tax included Shipping excluded
In stock

Description

The solid needle roller bearing NKI22/16 from NKE is characterized by an inner diameter of 22 mm, an outer diameter of 34 mm, and a width of 16 mm. With a weight of 0.05 kg, it is a lightweight bearing that does not have a seal and is therefore an open bearing. It has a tolerance class of P0/PN or ABEC 1 and can be used in a temperature range of -20 to +100 °C.

The needle roller bearing has a circumferential groove with lubrication hole(s) and consists of a row of needles, an inner ring, and a steel sheet cage. The bearing clearance is normal radial bearing clearance. A reliable and robust bearing for various applications.
