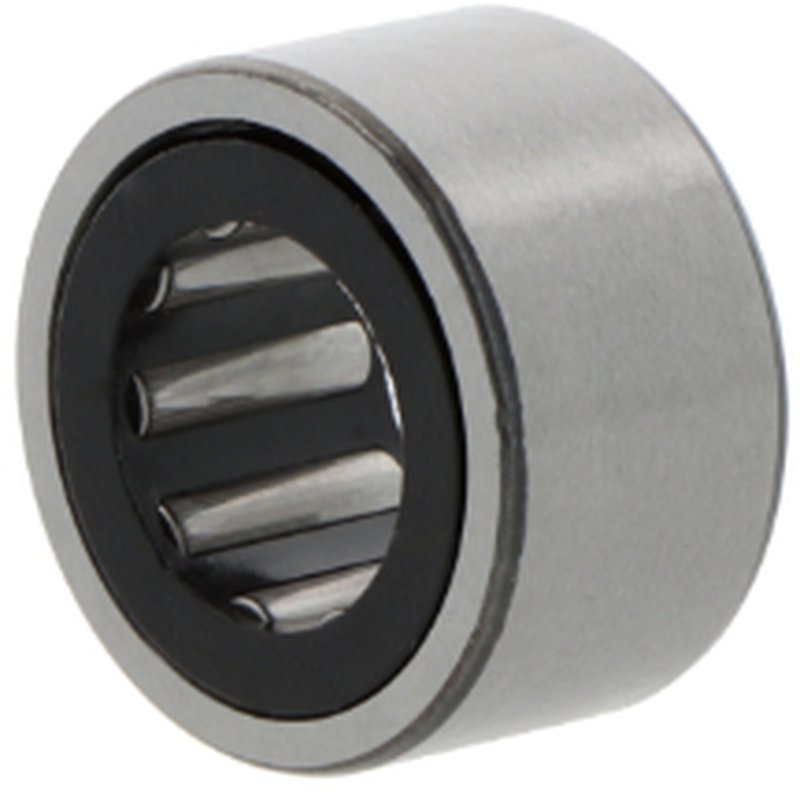

Nadellager massiv NK5/10-TN 5x10x10mm ZEN
Reference AP10135625
Data sheet
- Seal
- None, open bearing
- Clearance
- Normal radial clearance
- Cage
- Polyamide cage
- Temperature range
- -20 to +100 °C
- Tolerance class
- Tolerance class P0/PN2 / ABEC 1
- Inner ring
- Without inner ring
- Width
- 10 mm
- Lubrication
- Without lubrication hole(s)
- Needle rows
- Single row bearing
- Inner dimension
- 5 mm
- Outer dimension
- 10 mm
- Weight
- 0,003 kg
Innendurchmesser: 5 mm
Außendurchmesser: 10 mm
Breite: 10 mm
Gewicht: 0.003000 kg
