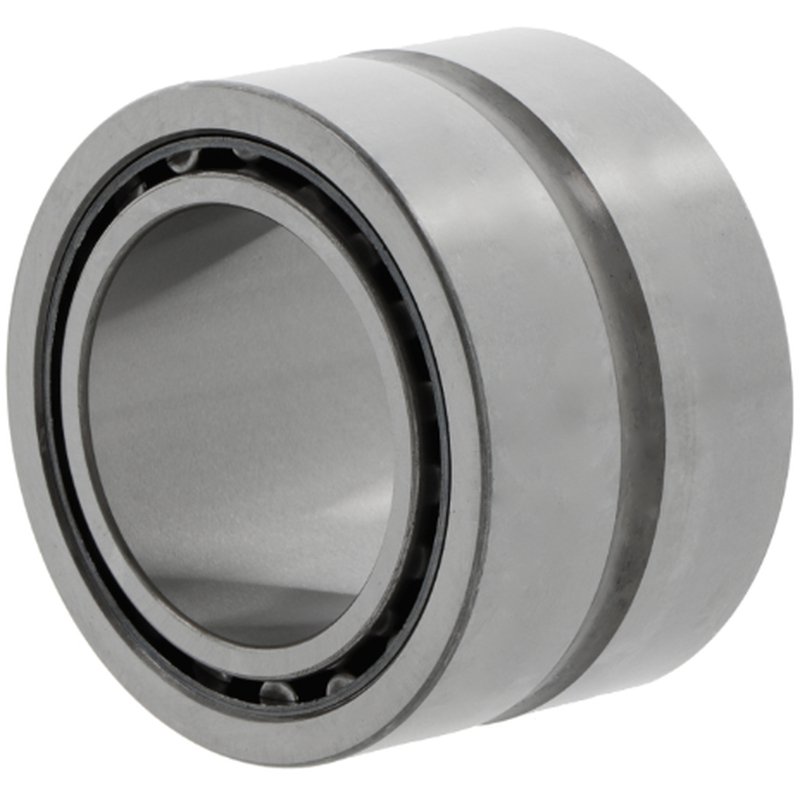

Machined needle roller bearings NA69/32 R 32x52x36mm NTN

Reference AP10120688 EAN: 4547359113983
Machined needle roller bearings NA69/32 R
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
With inner ring
Width
36 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Double row bearing
Inner dimension
32 mm
Outer dimension
52 mm
Weight
0,302 kg
€37.87
[€37.87 Stück]
Tax included Shipping excluded
In stock

Description

The solid needle roller bearing NA69/32 R from NTN has an inner diameter of 32 mm, an outer diameter of 52 mm, and a width of 36 mm. With a weight of 0.302 kg and lubrication through circumferential groove with lubrication holes, this bearing is ideal for applications ranging from -20 to +100 °C. The double row bearing has a tolerance class of P0/PN or ABEC 1 and a steel sheet cage. It has no seal and normal radial bearing clearance. Equipped with an inner ring, this needle roller bearing offers reliable performance and durability.
