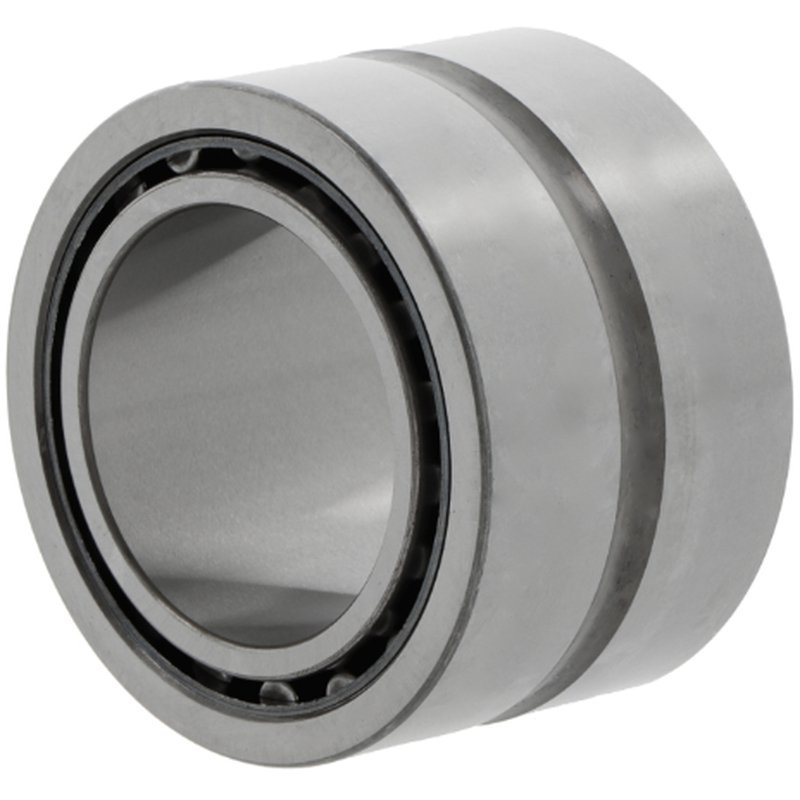

Machined needle roller bearings NA6911 55x80x45mm NKE

Reference AP10075849 EAN: 9008745715341
Machined needle roller bearings NA6911
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
With inner ring
Width
45 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Double row bearing
Inner dimension
55 mm
Outer dimension
80 mm
Weight
0,78 kg
€71.63
[€71.63 Stück]
Tax included Shipping excluded
In stock

Description

The needle roller bearing NA6911 from NKE is a solid bearing with an inner diameter of 55mm, an outer diameter of 80mm, and a width of 45mm. It weighs 0.78kg and is lubricated with a circumferential groove with lubrication hole(s). The bearing is open and has no seal.

It is suitable for a temperature range of -20 to +100 °C and features two rows of needles, making it a double row bearing. It has a tolerance class of P0/PN or ABEC 1 and a steel sheet cage. The bearing clearance is normal and it includes an inner ring.
