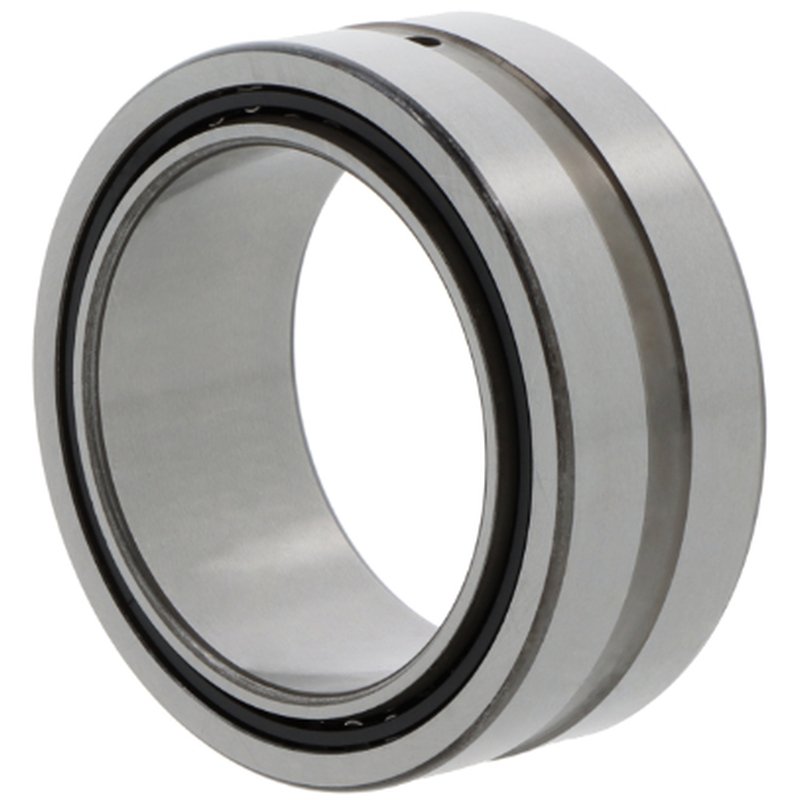

Machined needle roller bearings NKI5/16 TN 5x15x16mm SKF

Reference AP10055695 EAN: 7316571008592
  • Out-of-Stock
Machined needle roller bearings NKI5/16 TN
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Polyamide cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
With inner ring
Width
16 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
5 mm
Outer dimension
15 mm
Weight
0,015 kg
€19.98
[€19.98 Stück]
Tax included Shipping excluded
Out-of-Stock

Description

The needle roller bearing NKI5/16 TN from SKF has an inner diameter of 5mm, an outer diameter of 15mm, and a width of 16mm. With a weight of only 0.015kg, it is a lightweight bearing. It does not have a seal and is therefore an open bearing. The temperature range is from -20 to +100°C, allowing for versatile applications. Thanks to the circumferential groove with lubrication hole(s), the lubrication of the bearing is easy. It is a single row bearing with tolerance class P0/PN or ABEC 1. The needle roller bearing is equipped with a polyamide cage and normal radial bearing clearance. Additionally, it has an inner ring for added stability.
