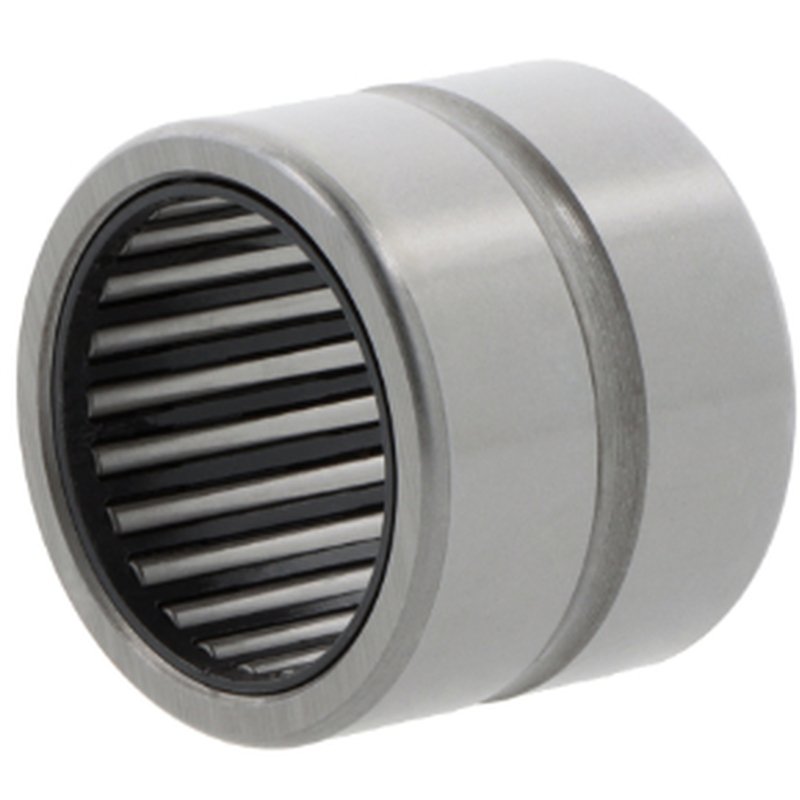

Machined needle roller bearings NK75/25 75x92x25mm INA

Reference AP10049093 EAN: 4012802701043
Machined needle roller bearings NK75/25
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
Without inner ring
Width
25 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
75 mm
Outer dimension
92 mm
Weight
0,311 kg
€70.06
[€70.06 Stück]
Tax included Shipping excluded
In stock

Description
The needle roller bearing NK75/25 from INA has an inner diameter of 75mm, an outer diameter of 92mm, and a width of 25mm. The bearing weighs 0.311kg and is without sealing, it is an open bearing. It can be used in a temperature range of -20 to +100 °C and has a circumferential groove with lubrication hole(s) for lubrication. The needle roller bearing NK75/25 is a single row bearing without inner ring and corresponds to tolerance class P0/PN or ABEC 1. The cage is made of a steel sheet cage and the bearing clearance is normal radial bearing clearance.
