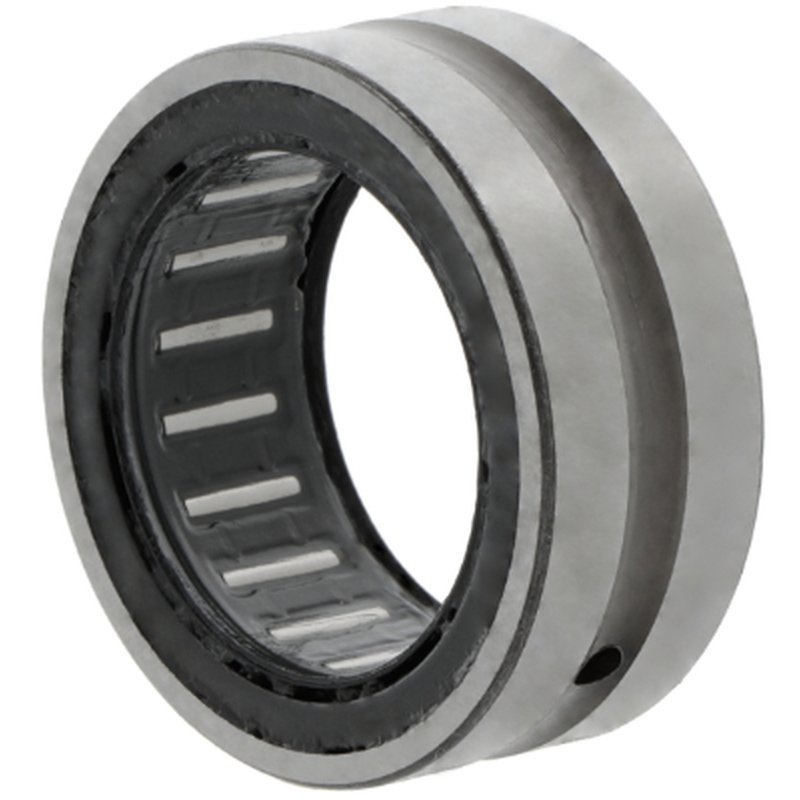

Machined needle roller bearings RNA4900-2RS 14x22x13mm INA

Reference AP10047506 EAN: 4012802203011
  • Out-of-Stock
Machined needle roller bearings RNA4900 -2RS
Data sheet
Seal
Lip seal on both sides
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
Without inner ring
Width
13 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
14 mm
Outer dimension
22 mm
Weight
0,016 kg
€23.55
[€23.55 Stück]
Tax included Shipping excluded
Out-of-Stock

Description

The solid needle roller bearing RNA4900-2RS by INAA is a high-quality bearing with a variety of technical features. With an inner diameter of 14mm, an outer diameter of 22mm, and a width of 13mm, it provides a precise fit for various applications. The weight of 0.016kg makes it lightweight yet robust.

The needle roller bearing is equipped with lip seals on both sides, providing reliable protection against dirt and moisture. It complies with tolerance class P0/PN or ABEC 1, ensuring high precision and low friction operation.

The temperature range of -20 to +120 °C allows for use in different environments. The bearing is designed without an inner ring and features a circumferential groove with lubrication holes for efficient lubrication.

This single row needle roller bearing has a sturdy steel sheet cage and normal radial bearing clearance. With all these technical specifications, the solid needle roller bearing RNA4900-2RS by INAA is a reliable choice for various industrial applications.
