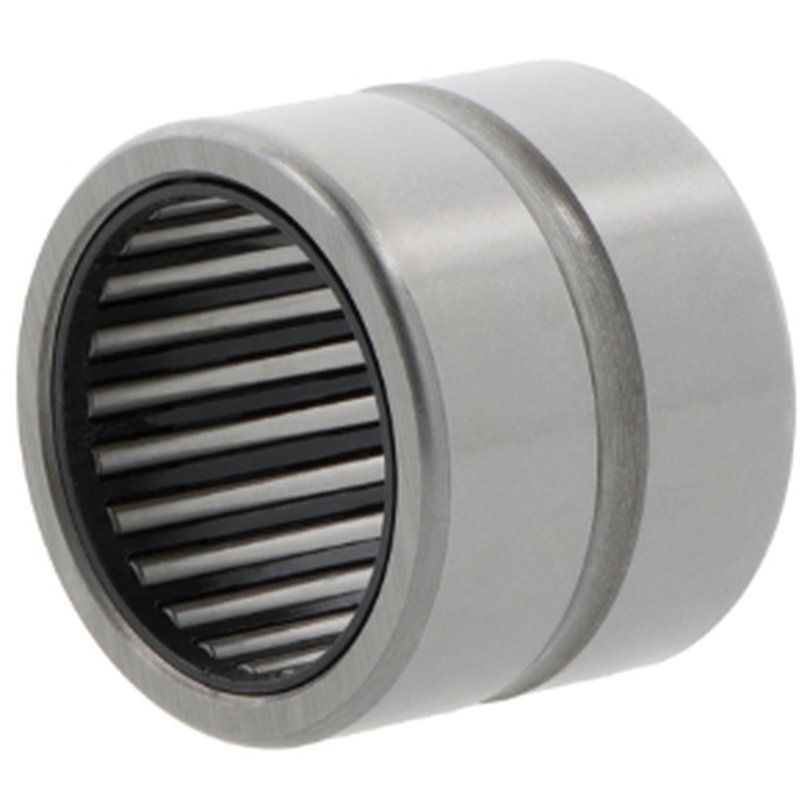

Machined needle roller bearings RNA49/28 32x45x17mm INA

Reference AP10047505 EAN: 4012802692419
Machined needle roller bearings RNA49/28
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
Without inner ring
Width
17 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
32 mm
Outer dimension
45 mm
Weight
0,075 kg
€25.09
[€25.09 Stück]
Tax included Shipping excluded
In stock

Description

The Radial Needle Roller Bearing RNA49/28 from INA has an inner diameter of 32mm, an outer diameter of 45mm, and a width of 17mm. Weighing 0.075kg, it is a lightweight bearing. It has no seal and is an open bearing. The needle roller bearing has a tolerance class of P0/PN or ABEC 1 and can be used in a temperature range of -20 to +100°C. It does not have an inner ring and features a circumferential groove with lubrication holes for lubrication. The single row bearing has a steel sheet cage and normal radial bearing clearance. The Radial Needle Roller Bearing RNA49/28 from INA is a reliable bearing for various applications.
