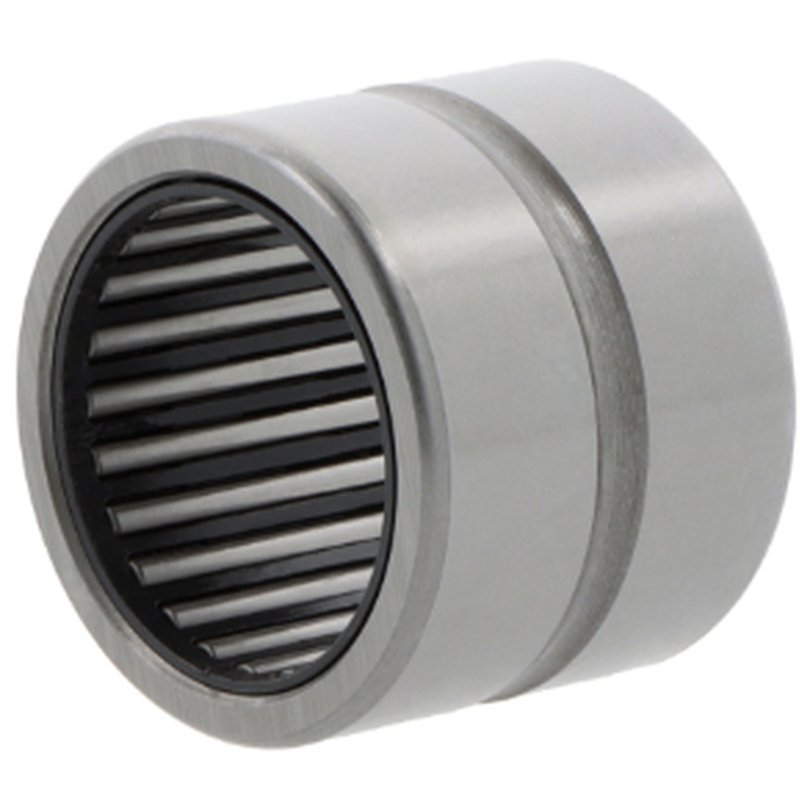

Machined needle roller bearings NKS20 20x32x20mm INA

Reference AP10047428 EAN: 4012802059977
Machined needle roller bearings NKS20
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
Without inner ring
Width
20 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
20 mm
Outer dimension
32 mm
Weight
0,051 kg
€24.54
[€24.54 Stück]
Tax included Shipping excluded
In stock

Description

The INA NKS20 needle roller bearing has an inner diameter of 20mm, an outer diameter of 32mm, and a width of 20mm. With a weight of only 0.051kg, it is particularly lightweight. The bearing does not include an inner ring and does not have a seal, making it an open bearing. It conforms to tolerance class P0/PN or ABEC 1 and is suitable for a temperature range of -20 to +100 °C.

The needle roller bearing is equipped with a circumferential groove and lubrication holes for optimal lubrication. The cage is made of durable steel sheet and the bearing consists of a row of needles, making it a single row bearing. The bearing clearance is normal radial bearing clearance.
