Machined needle roller bearings NKI90/36 90x120x36mm INA

Reference AP10047396 EAN: 4012802702019

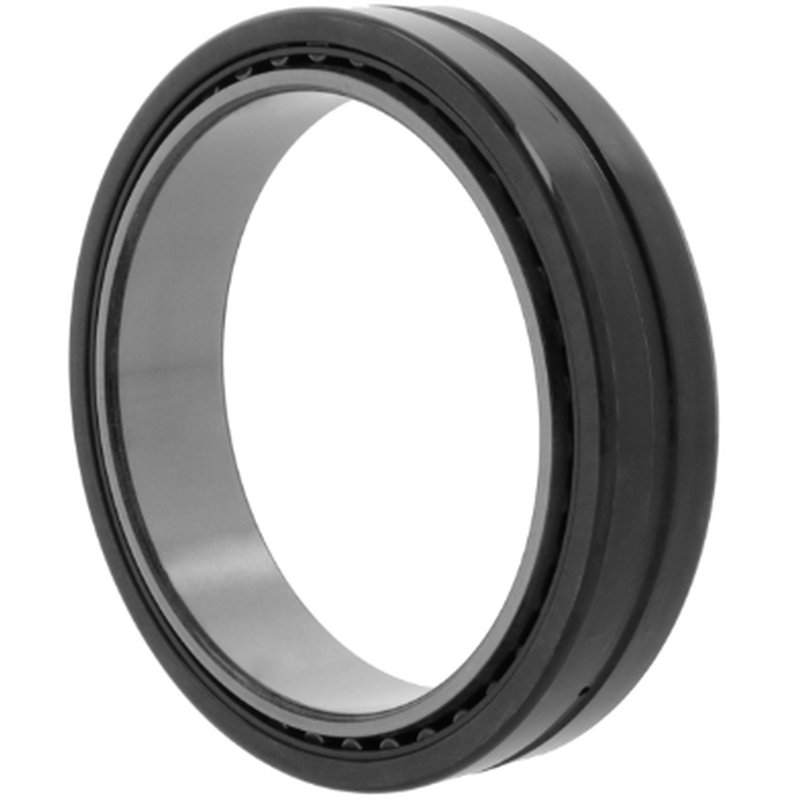

Machined needle roller bearings NKI90/36
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
With inner ring
Width
36 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
90 mm
Outer dimension
120 mm
Weight
1,087 kg
€193.93
[€193.93 Stück]
Tax included Shipping excluded
In stock

Description

The needle roller bearing NKI90/36 from the brand INA is a single row bearing with an inner diameter of 90mm, an outer diameter of 120mm, and a width of 36mm. It weighs 1.087kg and has no seal, making it an open bearing. The needle roller bearing is designed for a temperature range of -20 to +100 °C and has a circumferential groove with lubrication hole(s) for optimal lubrication. The tolerance class of the bearing is P0/PN or ABEC 1 and the cage is made of a steel sheet cage. The bearing clearance is normal radial bearing clearance and the needle roller bearing is equipped with an inner ring.
