Machined needle roller bearings NK25/16 25x33x16mm INA

Reference AP10047368 EAN: 4012802701302

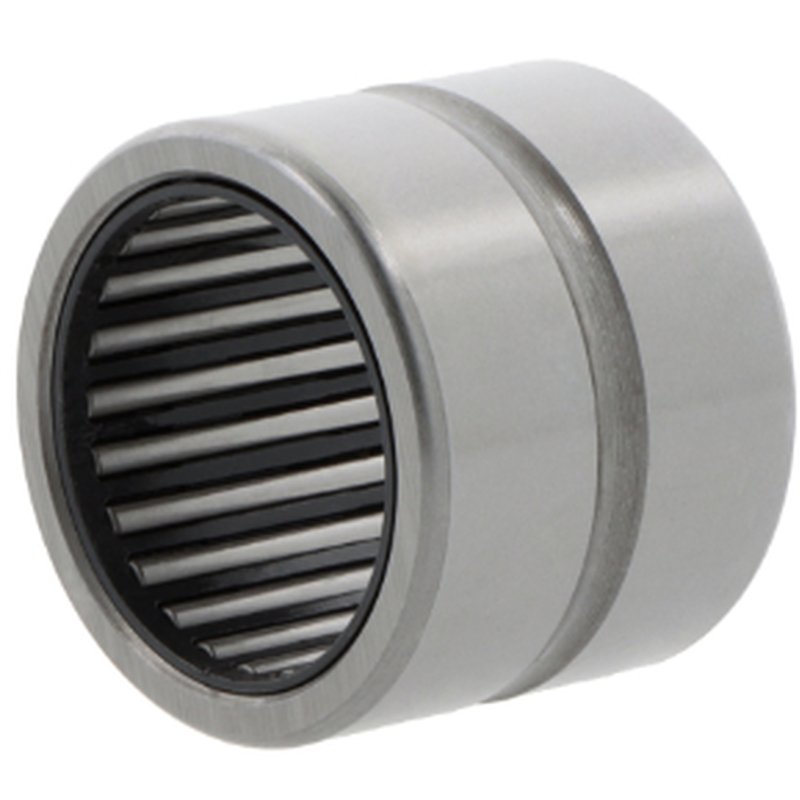

Machined needle roller bearings NK25/16
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Sheet steel cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
Without inner ring
Width
16 mm
Lubrication
Groove with lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
25 mm
Outer dimension
33 mm
Weight
0,032 kg
€16.65
[€16.65 Stück]
Tax included Shipping excluded
In stock

Description

The solid needle roller bearing NK25/16 from the brand INA has an inner diameter of 25mm, an outer diameter of 33mm, and a width of 16mm. With a weight of only 0.032kg, it is particularly lightweight. The bearing is open and does not have a seal. It is suitable for a temperature range of -20 to +100 °C and is equipped with a circumferential groove and lubrication holes for optimal lubrication. The single-row bearing belongs to the tolerance class P0/PN or ABEC 1. It does not have an inner ring and has a stable steel sheet cage. The bearing clearance is set as normal radial bearing clearance in this version.
