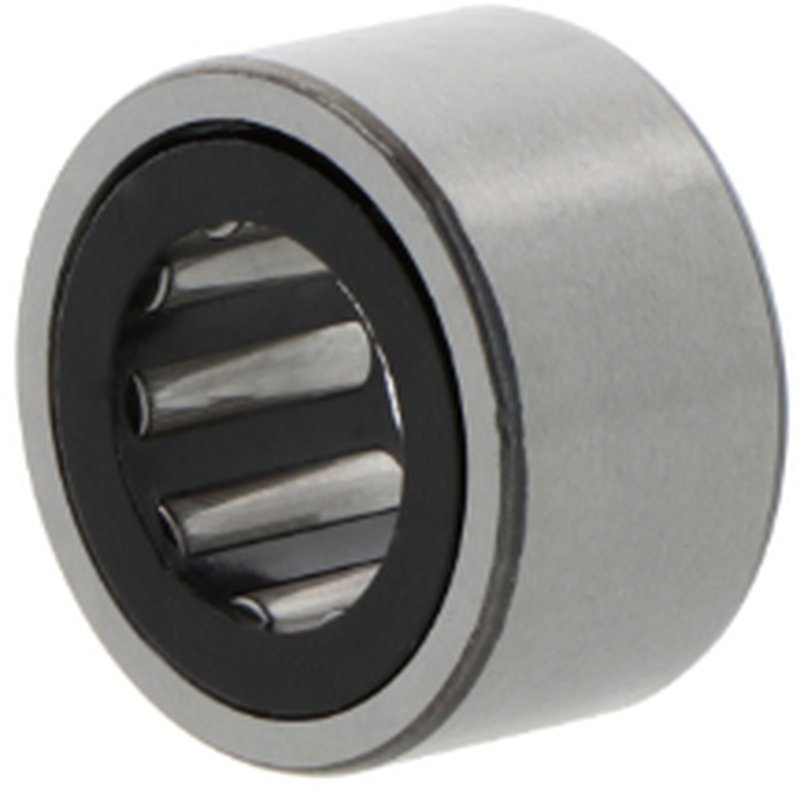

Nadellager massiv NK9/12-TV 9x16x12mm INA
Reference AP10047302
EAN: 4012802733341
Data sheet
- Seal
- None, open bearing
- Clearance
- Normal radial clearance
- Cage
- Polyamide cage
- Temperature range
- -20 to +100 °C
- Tolerance class
- Tolerance class P0/PN2 / ABEC 1
- Inner ring
- Without inner ring
- Width
- 12 mm
- Lubrication
- Without lubrication hole(s)
- Needle rows
- Single row bearing
- Inner dimension
- 9 mm
- Outer dimension
- 16 mm
- Weight
- 0,009 kg
Innendurchmesser: 9 mm
Außendurchmesser: 16 mm
Breite: 12 mm
Gewicht: 0.009000 kg
