Machined needle roller bearings NK6/12-TV 6x12x12mm INA

Reference AP10047294 EAN: 4054368759342

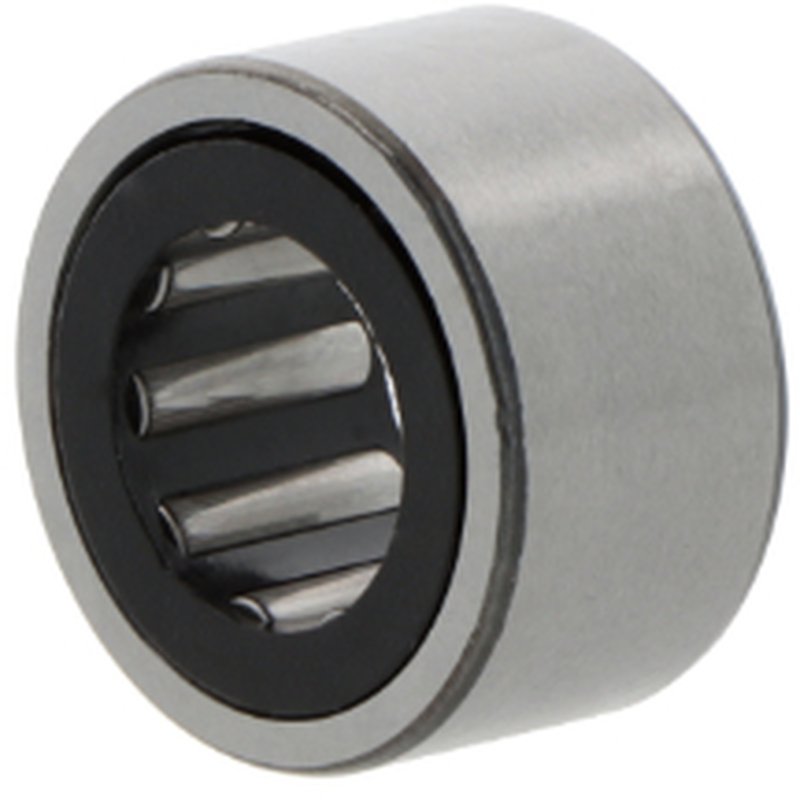

Machined needle roller bearings NK6/12 -TV
Data sheet
Seal
None, open bearing
Clearance
Normal radial clearance
Cage
Polyamide cage
Temperature range
-20 to +100 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Inner ring
Without inner ring
Width
12 mm
Lubrication
Without lubrication hole(s)
Needle rows
Single row bearing
Inner dimension
6 mm
Outer dimension
12 mm
Weight
0,006 kg
€10.21
[€10.21 Stück]
Tax included Shipping excluded
In stock

Description

The needle roller bearing NK6/12-TV is a top-quality product from the brand INA. With an inner diameter of 6mm, an outer diameter of 12mm, and a width of 12mm, it is ideal for various applications. The bearing weighs only 0.006kg and has no seal, making it an open bearing. It can be used in a temperature range of -20 to +100°C and is equipped with a single row of needle rollers.

The needle roller bearing NK6/12-TV has no inner ring and complies with tolerance class P0/PN or ABEC 1. It also has no lubrication holes for lubrication. The cage is made of high-quality polyamide and the bearing clearance is set to normal radial bearing clearance.

With these impressive technical specifications, the needle roller bearing NK6/12-TV from INA offers reliable performance and durability. It is suitable for applications in various industries and ensures that your machines operate smoothly and efficiently.
