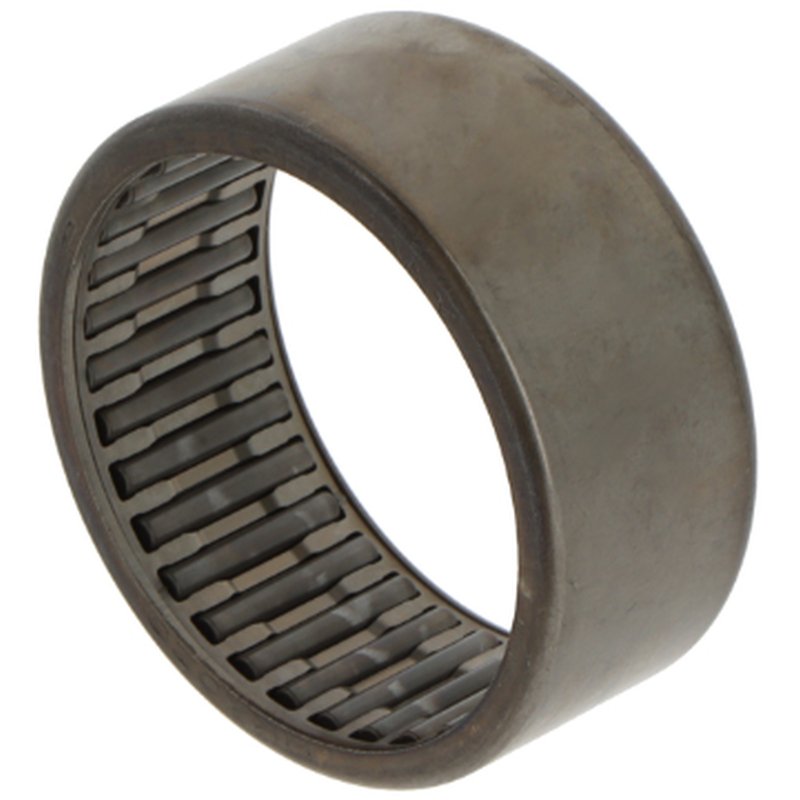

Drawn cup roller bearings with open end HK3516 F 35x42x16mm NTN

Reference AP10203892 EAN: 4550253041443
Drawn cup roller bearings with open end HK3516 F
Data sheet
Seal
Without seal
Cage
Sheet steel cage
Temperature range
-20 to +120 °C
Width
16 mm
Needle rows
Single row bearing
Lubrication hole
Without lubrication groove
Inner dimension
35 mm
Outer dimension
42 mm
Weight
0,045 kg
€4.48
[€4.48 Stück]
Tax included Shipping excluded
In stock

Description

The needle rollers HK3516 F from NTN are high-quality single row bearings with an inner diameter of 35 mm, an outer diameter of 42 mm, and a width of 16 mm. Weighing only 0.045 kg, they offer high load carrying capacity and are ideal for applications in a temperature range from -20 to +120 °C. The cage is made of sturdy steel sheet and ensures reliable needle guidance. Despite their compact size, the needle rollers do not have lubrication holes and seals, making them particularly easy to use.
