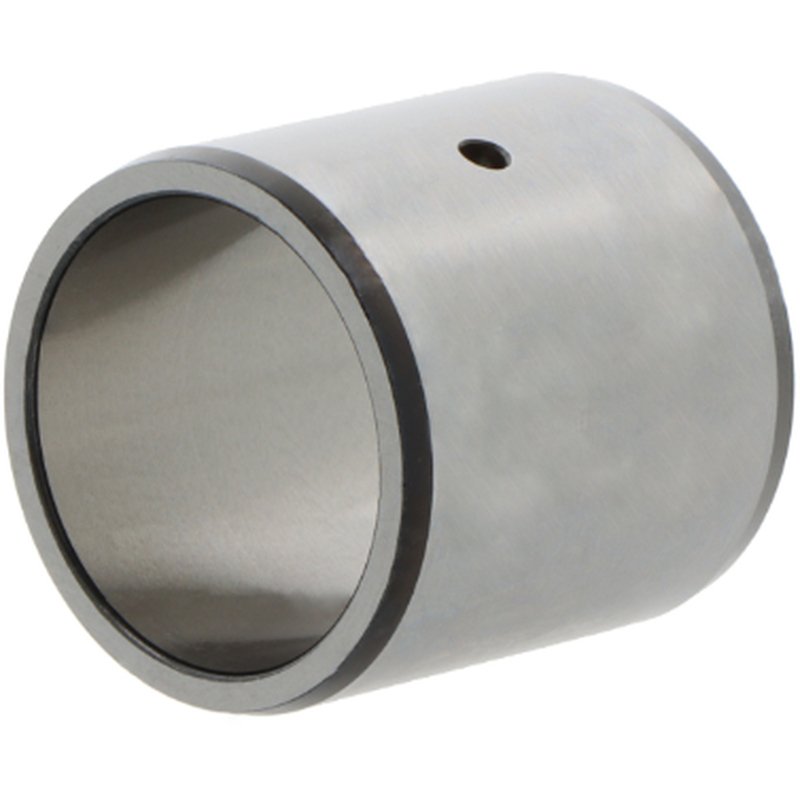

Inner rings IR30-35-30-IS1 30x35x30mm INA

Reference AP10094476 EAN: 4012802719314
Inner rings IR30-35-30 -IS1
Data sheet
Width
30 mm
Lubrication hole
With lubrication groove
Surface
No twist-free grinding
Inner dimension
30 mm
Outer dimension
35 mm
Weight
0,059 kg
€24.86
[€24.86 Stück]
Tax included Shipping excluded
In stock

Description

The inner ring IR30-35-30-IS1-XL from INA is a high-quality product with the following technical specifications:

  • Inner diameter: 30mm
  • Outer diameter: 35mm
  • Width: 30mm
  • Weight: 0.059kg
  • Lubrication hole: with lubrication hole
  • Raceway: finely machined, end faces flattened
  • Surface: not ground non-locating bearing

Thanks to its precise manufacturing and special features such as the lubrication hole and finely machined raceway, this inner ring is ideal for various applications. With its compact dimensions and light weight, it can also be used in space-restricted environments.

Overall, the INA IR30-35-30-IS1-XL offers high quality and reliability, and is an excellent choice for technical applications requiring precise components.
